Description

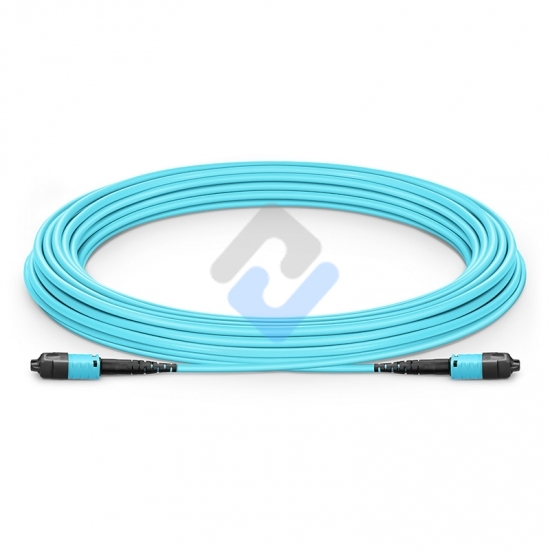

MTP® PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP® PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Specification
| Connector A | US Conec MTP® PRO | Connector B | US Conec MTP® PRO |
| Fiber Type | OM3 50/125μm | Wavelength | 850/1300 |
| 40/100G Ethernet Distance | 100m at 850nm | 10G Ethernet Distance | 300m at 850nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| Polish Type | UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | ≤0.35 dB | Return Loss | ≥20 dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Trunk Diameter | 3.0-17.3 mm | Cable Jacket | OFNP/LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operation Temperature | -10~70°C | Storage Temperature | -40~85°C |
| Fiber Count | 8/12/24/48 |
