Description

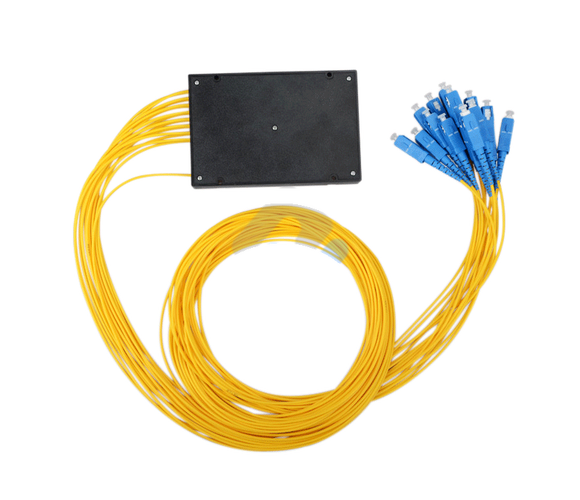

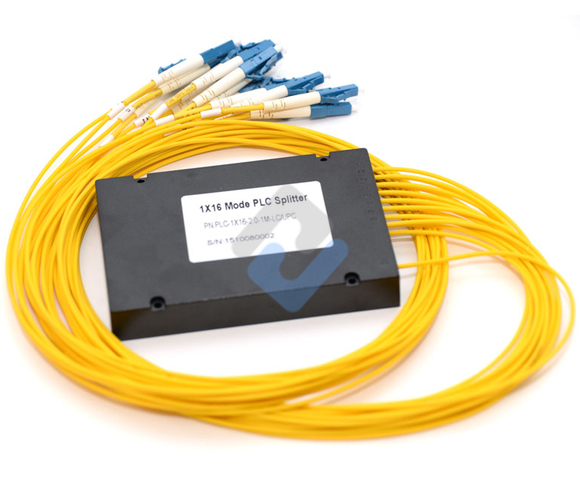

Planar lightwave circuit ( PMPO) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Specification
| Package Style | ABS Module | Configuration Type | 1x16 |
| ファイバーグレード | G.657A1 | Input/Output Fiber Length | 1.5 m |
| Insertion Loss | ≤13.8 dB | Return Loss | ≥55 dB |
| Loss Uniformity | ≤1.6 dB | Directivity | ≥55 dB |
| Polarization Dependent Loss | ≤0.3 db | Temperature Dependent Loss | ≤0.5 dB |
| Wavelength Dependent Loss | ≤0.3 dB | Operating Bandwidth | 1260~1650 nm |
| Splice Program | 50/50 | 運転温度 | -40~85°C |
| Storage Temperature | -40~85°C | Dimensions (HxWxD) | 18x120x80 mm |
| Connector Type | LC | 入出力ファイバ直径 | 2.0 |
