Description

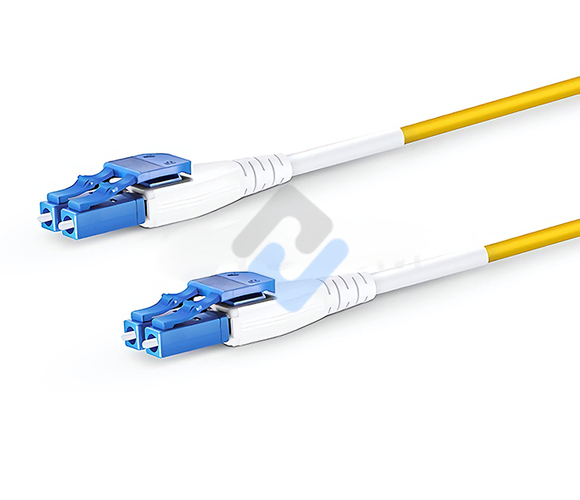

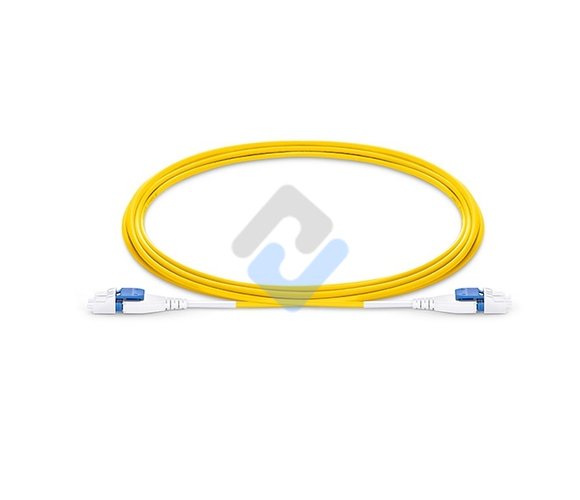

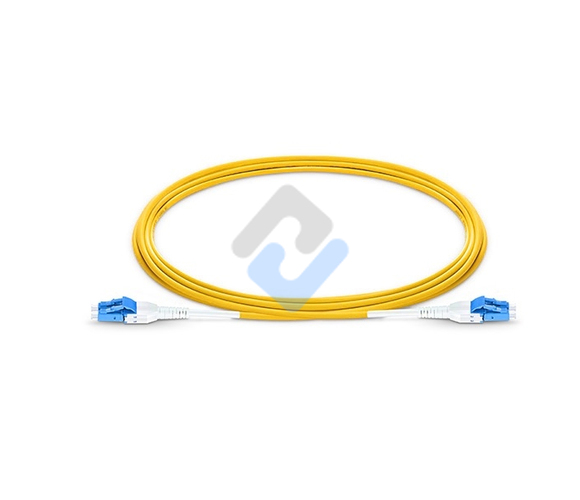

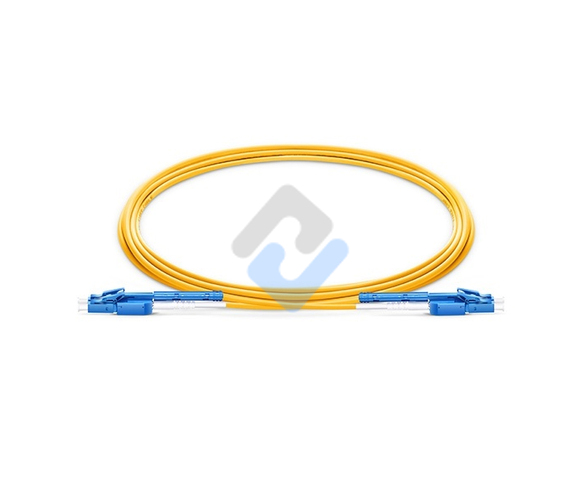

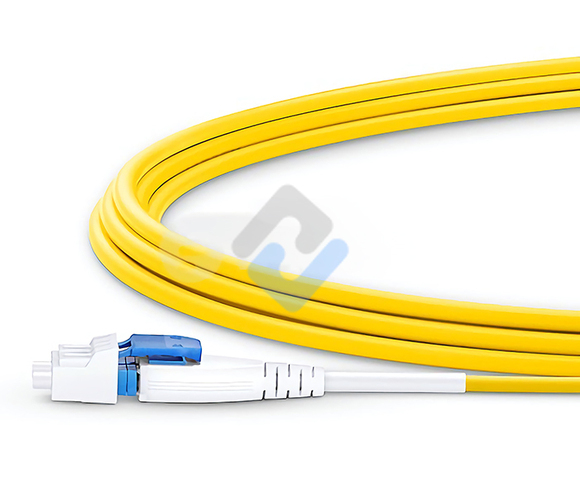

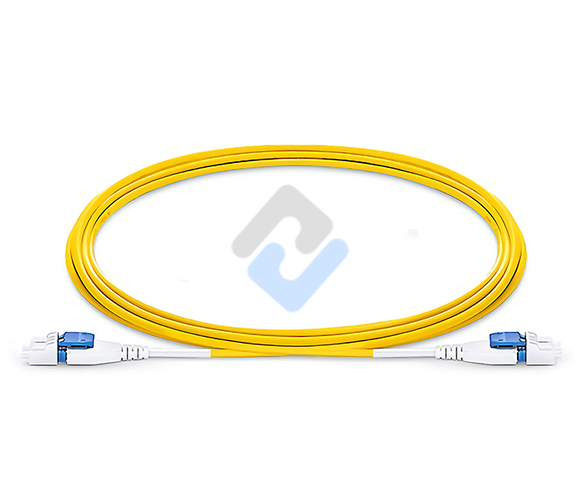

The MPO to MPO uniboot connector allows two fibers to be carried through a 2.0mm single jacket. It can be used in high-density cabling areas such as data center which saves space, improves airflow and energy efficiency and reduces cable management troubles. The cable with bend insensitive also can be stapled and bent around corners without sacrificing performance.
Specification
| Connector Type | LC-LC | Polish Type | UPC/APC |
| Fibertyp. | OS2 9/125µm | Wavelength | 1310/1550nm |
| Faserzählung | Duplex | Faserqualität | G.657.A1 |
| Insertion Loss | UPC≤0.2/ APC≤0.3 dB | Return Loss | UPC≥50 / APC≥65 dB |
| Attenuation at 1310 nm | 0.32 dB/km | Attenuation at 1550 nm | 0.18 dB/km |
| Minimum Bend Radius | 10 mm | Cable Diameter | 2.0mm |
| Cable Jacket | PVC/LSZH/OFNP | Jacket Color | Yellow |
| Polarity | A(Tx) to B(Rx) | Betriebs-Temperatur | -40~75°C |
