Description

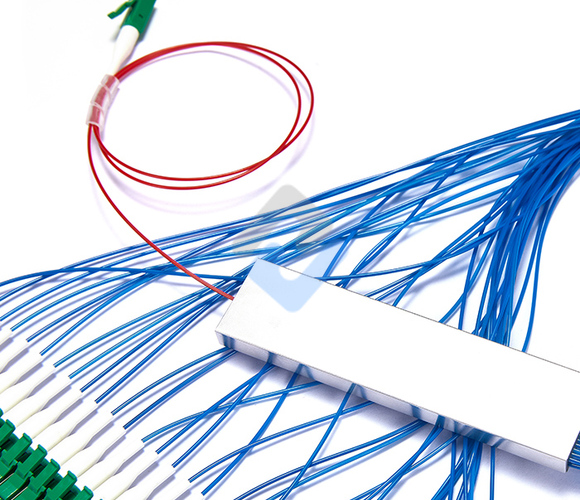

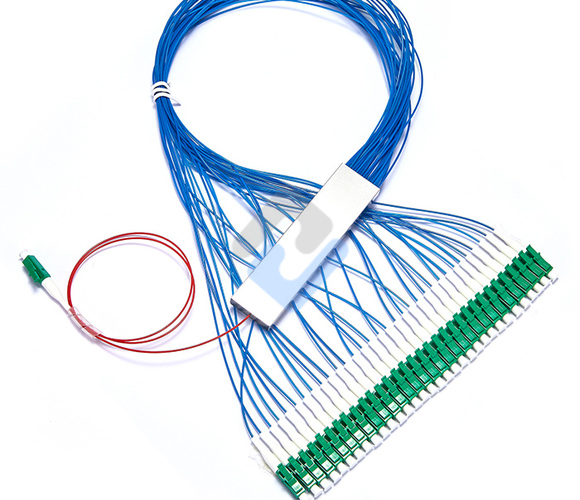

1X32 mini module PLC Splitter (Planar waveguide Circuit optical splitter) are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability. They are designed for FTTH Passive Optical Networks,CWDM,DWDM and optical cable TV System.
Specification
| Package Style | Mini Module | Eingangs- / Ausgangsfaserdurchmesser | 900μm |
| Input/Output Fiber Length | 1.5 m | Insertion Loss | ≤4.0 dB |
| Return Loss | ≥50 dB | Loss Uniformity | ≤0.4 dB |
| Directivity | ≥55 dB | Polarization Dependent Loss | ≤0.2 db |
| Temperature Dependent Loss | ≤0.5 dB | Wavelength Dependent Loss | ≤0.3 dB |
| Operating Bandwidth | 1260~1650 nm | Split Ratio | 50/50 |
| Steel Tube Dimensions (HxWxD) | 4x50x7 mm | Betriebs-Temperatur | -20~70°C |

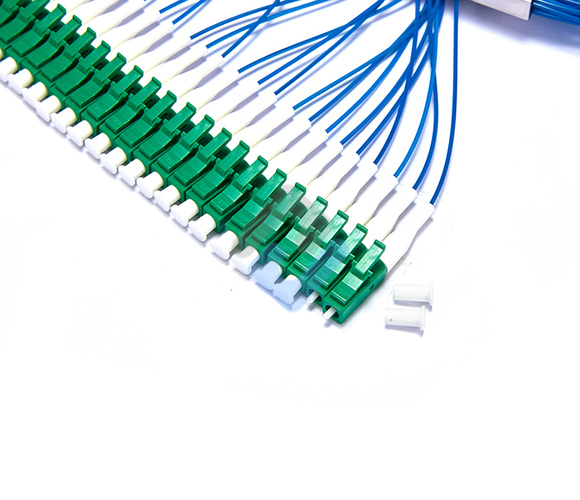

| Storage Temperature | -40~85°C | Connector Type | LC |
| Configuration Type | 1x32 |
